- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Geist
- Product Series
- rPDUs
- Product Type
- PDU

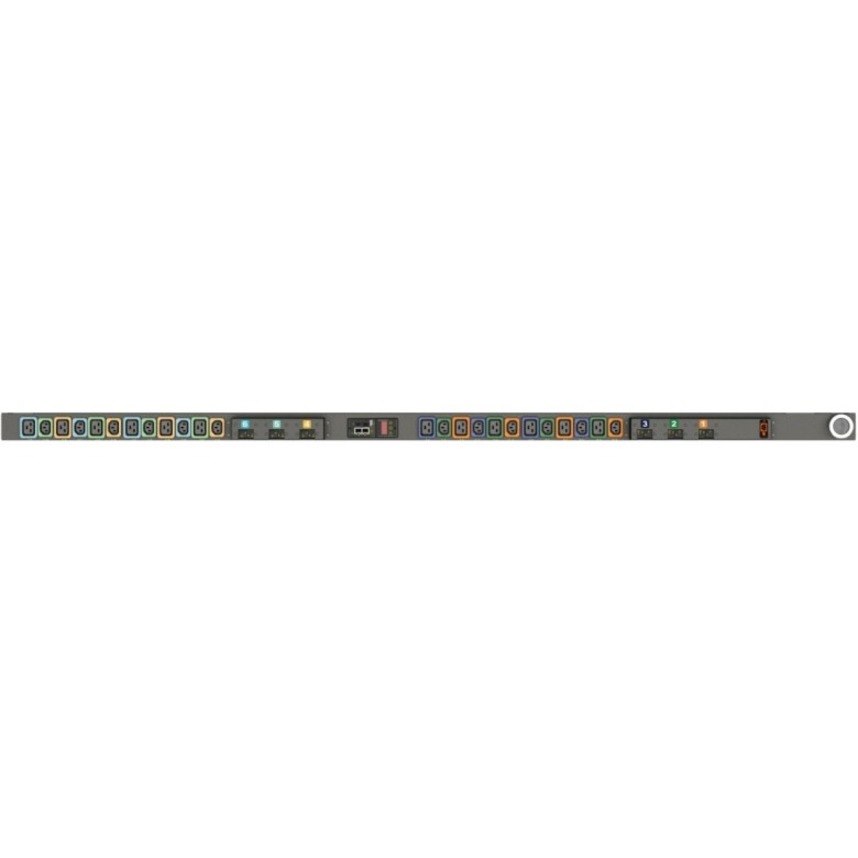

The Vertiv Geist Switched Rack PDU VP8641 is a 30A, 208V, 0U vertical rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP8641 has (20) locking IEC C13 and (4) locking IEC C19 outlets, and a L6-30P plug providing 4.9kW in power capacity. This Switched PDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. Visible Light Communication (VLC) technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five years if registered within 120 days of purchase.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Switched
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 20 x U-Lock IEC 60320 C13
- 4 x U-Lock IEC 60320 C19
- Power Description
- Input Voltage
- 230 V
- Power Rating (Watt)
- 4900 W
- Input Current
- 30 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Height
- 66.3"
- Width
- 2"
- Depth
- 2.6"
- Length
- 2.6"
- Weight (Approximate)
- 20 lb
- Miscellaneous
- Country of Origin
- United States
