- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Type
- PDU

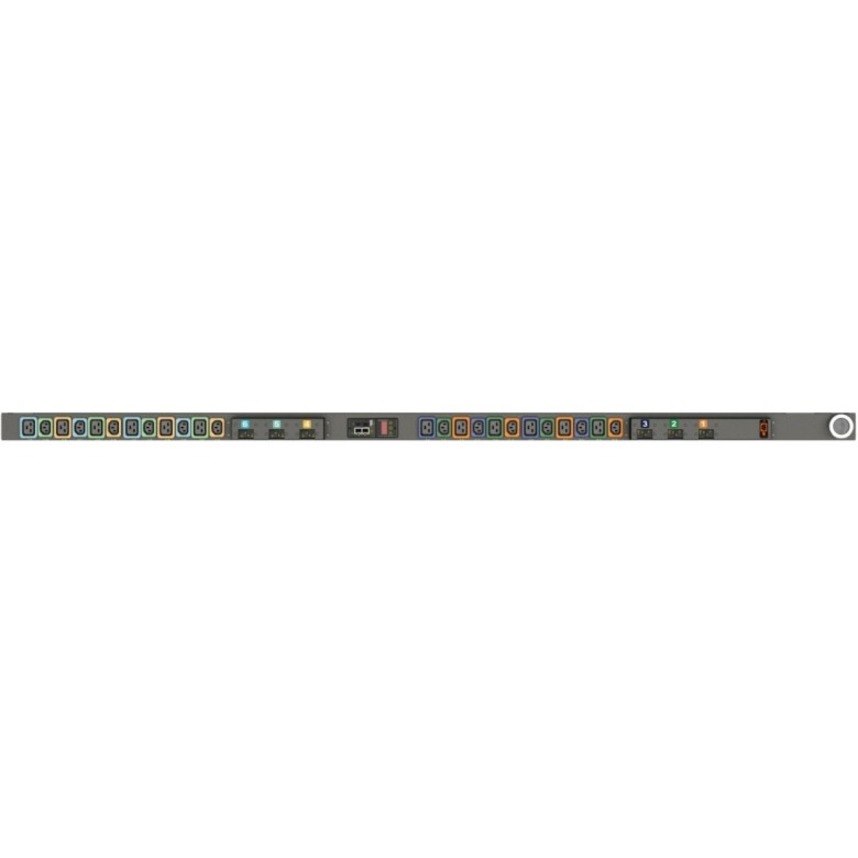

The NU30044L provides IP-based monitoring and outlet control with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NU30044L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- PDU Type
- Switched
- Phase
- Three Phase
- Plug/Connector Type
- 3P+E CA
- Plug/Connector Detail
- 1 x 3P+E CA
- Receptacle Type
- U-Lock IEC 60320 C13
- U-Lock IEC 60320 C19
- Receptacle Detail
- 12 x U-Lock IEC 60320 C13
- 12 x U-Lock IEC 60320 C19
- Protection Type
- Overcurrent Protection
- Double Pole
- Power Description
- Input Voltage
- 230 V AC
- Input Voltage Range
- 200 V AC - 240 V AC
- Output Voltage
- 208 V AC
- Power Rating (Watt)
- 14.40 kW
- Input Current
- 50 A
- Management
- Management
- DHCP
- HTTP
- HTTPS
- IPv4
- IPv6
- LDAP
- NTP
- RSTP
- SSH
- SMTP
- SNMP v1
- SNMP v2c
- SNMP v3
- Ssyslog
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Rack Height
- 0U
- Height
- 2.6"
- Width
- 2.3"
- Depth
- 2.6"
- Length
- 70"
- Miscellaneous
- Package Contents
- MNU3EGW1-24PBB8-5CS15A0A10-S-A 24-Outlet PDU
- Vertical Mounting Bracket Kit
- Country of Origin
- United States
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
