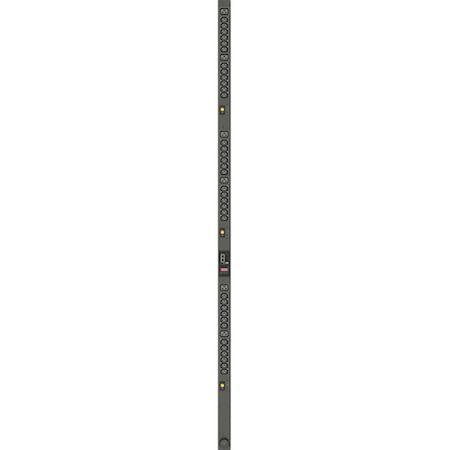

The Vertiv Geist Monitored Rack PDU VP8868 is a 35A, 208V DELTA, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8868 has (36) IEC C13 and (6) IEC C19 receptacles and a 3P+E CA plug providing 10.0kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Geist
- Product Series
- rPDUs
- Product Type
- PDU
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- PDU Type
- Monitored
- Phase
- Three Phase
- Plug/Connector Type
- 3P+E CA
- Plug/Connector Detail
- 1 x 3P+E CA
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 36 x IEC 60320 C13
- 6 x IEC 60320 C19
- Power Description
- Input Voltage
- 230 V AC
- Power Rating (Watt)
- 10 kW
- Input Current
- 35 A
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mounting Orientation
- Vertical
- Mount Type
- Rack-mountable
- Height
- 72"
- Width
- 2"
- Depth
- 2"
- Length
- 2"
- Weight (Approximate)
- 17 lb
- Miscellaneous
- Country of Origin
- United States
