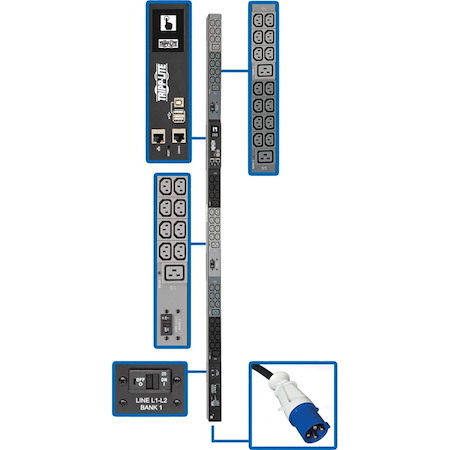

Tripp Lite by Eaton 10kW 200-240V 3PH Monitored PDU - LX Interface, Gigabit, 48 Outlets, IEC-309 30A Blue Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA

  • Part: 1083037
  • Model: PDU3EVN6G30B
$2,404.00
FREE DELIVERY

Availability

Out of Stock

The PDU3EVN6G30B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with IEC 309 30A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • PDU
  • Warranty
    • Limited Warranty
    • 2 Year

  • Technical Information
    • PDU Type
    • Monitored
    • Phase
    • Three Phase
    • Plug/Connector Type
    • IEC 60309 30A BLUE (3P+E)
    • Receptacle Type
    • IEC 60320 C19
    • IEC 60320 C13
    • Receptacle Detail
    • 6 x IEC 60320 C19
    • 42 x IEC 60320 C13
    • Protection Type
    • Overload Protection
  • Power Description
    • Input Voltage
    • 230 V AC
    • Output Voltage
    • 200 V AC
    • 208 V AC
    • 240 V AC
    • Power Rating (Watt)
    • 10 kW
    • Input Current
    • 24 A
  • Management
    • Management
    • Protocols:
      • IPv4
      • IPv6
      • HTTP
      • HTTPS
      • SMTP
      • SNMPv1
      • SNMPv2
      • SNMPv3
      • telnet
      • SSH
      • FTP
      • DHCP
      • NTP
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
  • Physical Characteristics
    • Mounting Orientation
    • Vertical
    • Mount Type
    • Rack-mountable
    • Rack Height
    • 0U
    • Height
    • 70"
    • Width
    • 2.2"
    • Depth
    • 2.9"
    • Weight (Approximate)
    • 15.19 lb
  • Miscellaneous
    • Package Contents
      • PDU3EVN6G30B 48-Outlet PDU
      • Configuration Cable
      • 48 x Plug-lock Insert Sleeves
      • Rack-mounting Hardware
      • Mounting Bracket Accessory
      • Owner's Manual
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
