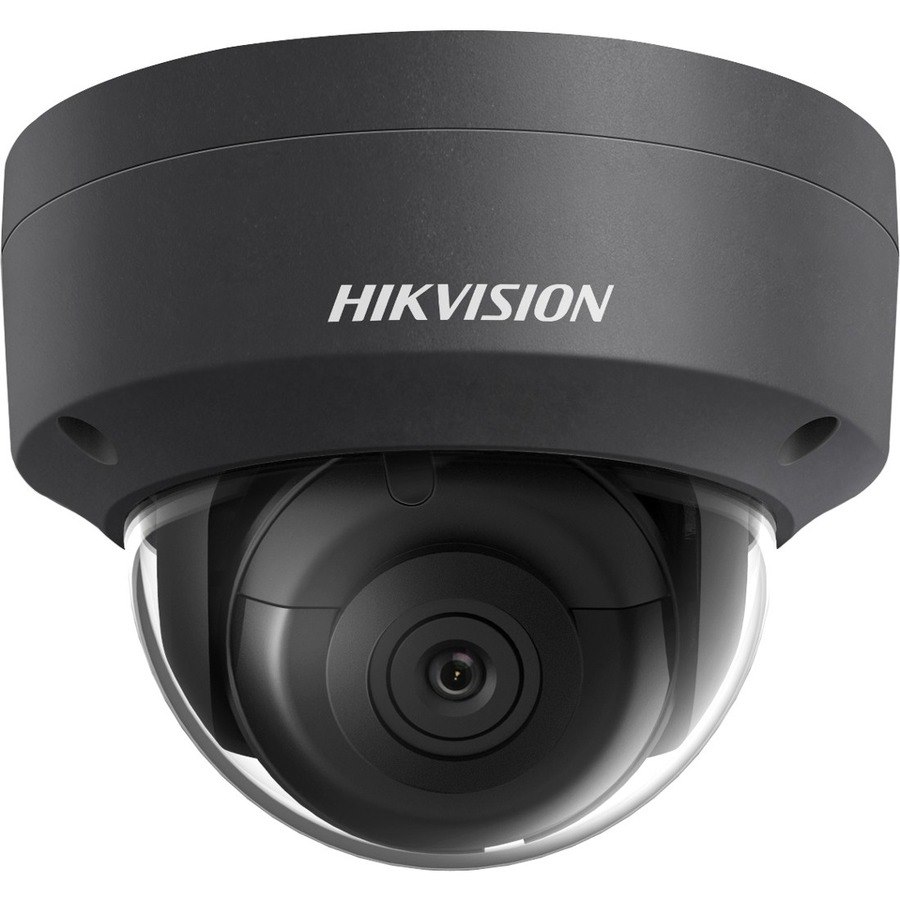

The Hikvision DS-2CD2143G0-IB Outdoor IR Fixed Dome Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.
- Minimum Illumination: Color: 0.018 Lux @ (f/1.6, AGC on)
- Up to 2688 x 1520 Resolution
- 2.8 mm and 4 mm Fixed Lens Options
- H.265+/H.265/H.264+/H.264
- Main Stream: 30 fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
- EXIR 2.0 Range Up to 100 ft (30 m)
- 12 VDC ± 25% (PoE 802.3af), maximum 7.5 W
- General Information
- Manufacturer
- Hikvision
- Manufacturer Website Address
- http://www.hikvision.com
- Brand Name
- Hikvision
- Product Line
- Value
- Packaged Quantity
- 1
- Product Type
- Network Camera
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 100 ft
- Night Vision Type
- Infrared
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Field of View
- horizontal FOV 103°, vertical FOV 58°, diagonal FOV 123°
- Effective Camera Resolution
- 4 Megapixel
- Video
- Video Formats
- H.264
- H.264+
- H.265
- H.265+
- MJPEG
- H.264 HP
- H.264 (MP)
- H.265 (MP)
- Maximum Video Resolution
- 2688 x 1520
- Maximum Frame Rate
- 30 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 2.80 mm
- Lens Included
- Yes
- Lens Mount Type
- M12-mount
- Maximum Aperture
- f/1.6
- Exposure
- Shortest Shutter Speed
- 1/100000 Second
- Longest Shutter Speed
- 1/3 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Power Source Type
- DC
- PoE
- Physical Characteristics
- Mount Type
- Pendant Mount
- Wall Mount
- Conduit Mount
- Form Factor
- Dome
- Color Family
- Black
- Product Color
- Black
- Height
- 3.2"
- Diameter
- 4.4"
- Weight (Approximate)
- 1.34 lb
- Environmental Conditions
- Minimum Operating Temperature
- -22°F (-30°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 95%
- Miscellaneous
- Features
- 3D Digital Noise Reduction
- Cross Line Detection
- Back Light Compensation (BLC)
- Day/Night
- Motion Detection
- Anti-flicker
- Password Protection
- Privacy Masking
- Indoor/Outdoor
- Outdoor
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP67
- Country of Origin
- China
