- General Information
- Manufacturer
- Vivotek, Inc
- Manufacturer Website Address
- http://www.vivotek.com
- Brand Name
- Vivotek
- Product Series
- S
- Product Type

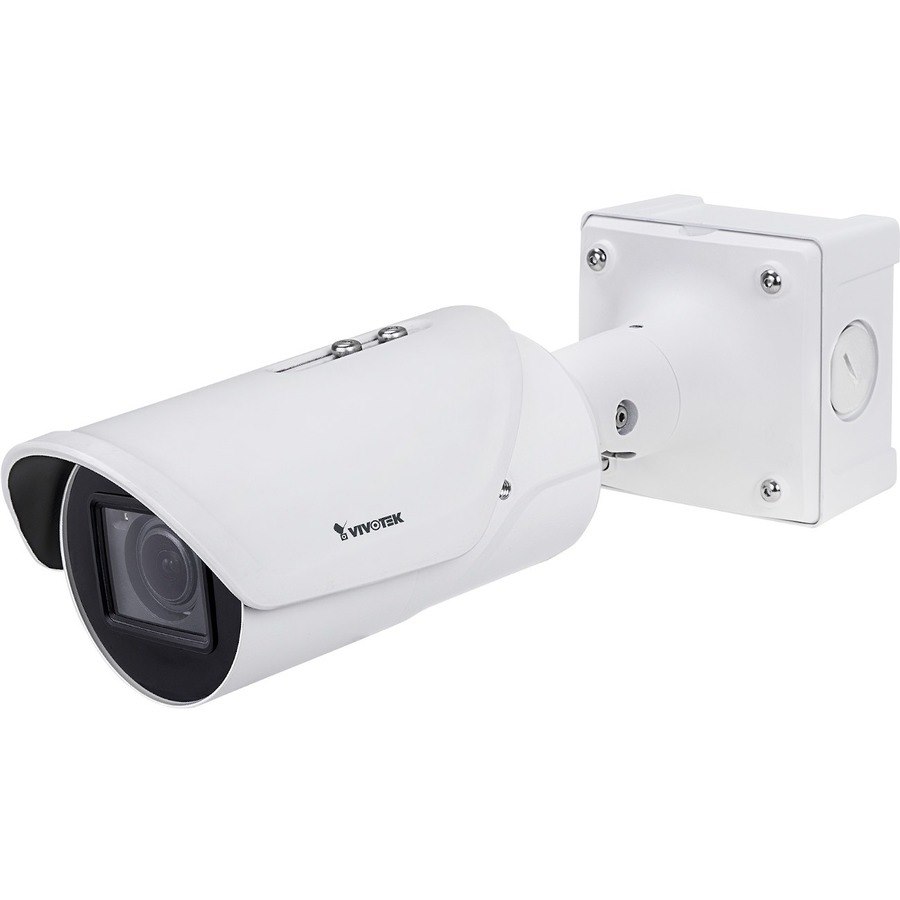

- Network Camera
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 164.04 ft
- Number of IR LEDs
- 6
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Field of View
- 100° ~ 46° (Horizontal) 52° ~ 26° (Vertical) 120° ~ 53° (Diagonal)
- Effective Camera Resolution
- 2 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 1920 x 1080
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Varifocal
- Minimum Focal Length
- 3.50 mm
- Maximum Focal Length
- 11.40 mm
- Lens Included
- Yes
- Minimum Aperture
- f/1.3
- Maximum Aperture
- f/2.2
- Optical Zoom
- 3.3x
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- 24 V AC
- Physical Characteristics
- Mount Type
- Junction Box Mount
- Pole Mount
- Corner Mount
- Form Factor
- Bullet
- Durability
- Weather Proof
- Vandal Proof
- Diameter
- 4.8"
- Weight (Approximate)
- 2.65 lb
- Environmental Conditions
- Minimum Operating Temperature
- -58°F (-50°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 98%
- Miscellaneous
- Features
- Audio Detection
- Audio Compression
- Microphone In
- Built-in Microphone
- HTTPS Encryption
- Password Protection
- Tamper Detection
- Shock Detection
- Alarm Triggering
- Built-in IR LED
- Motion Detection
- Cross Line Detection
- Human Detection
- SD Card Local Storage
- Day/Night
- Removable IR Cut-off Filter
- Automatic White Balance
- Auto Gain Control
- Defog
- 3D Noise Reduction
- Electronic Image Stabilization
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Privacy Masking
- Package Contents
- Bullet Network Camera
- Quick Installation Guide
- Screw Pack
- Alignment Sticker
- Desiccant Bag
- Waterproof Accessory Bag
- Junction Box
- Sunshield
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- IP67
- TAA Compliant
- Yes
