- General Information
- Manufacturer
- Ubiquiti Inc.
- Manufacturer Website Address
- http://www.ui.com
- Brand Name
- Ubiquiti
- Product Line
- Enterprise Campus
- Product Series
- ECS
- Product Type
- Ethernet Switch

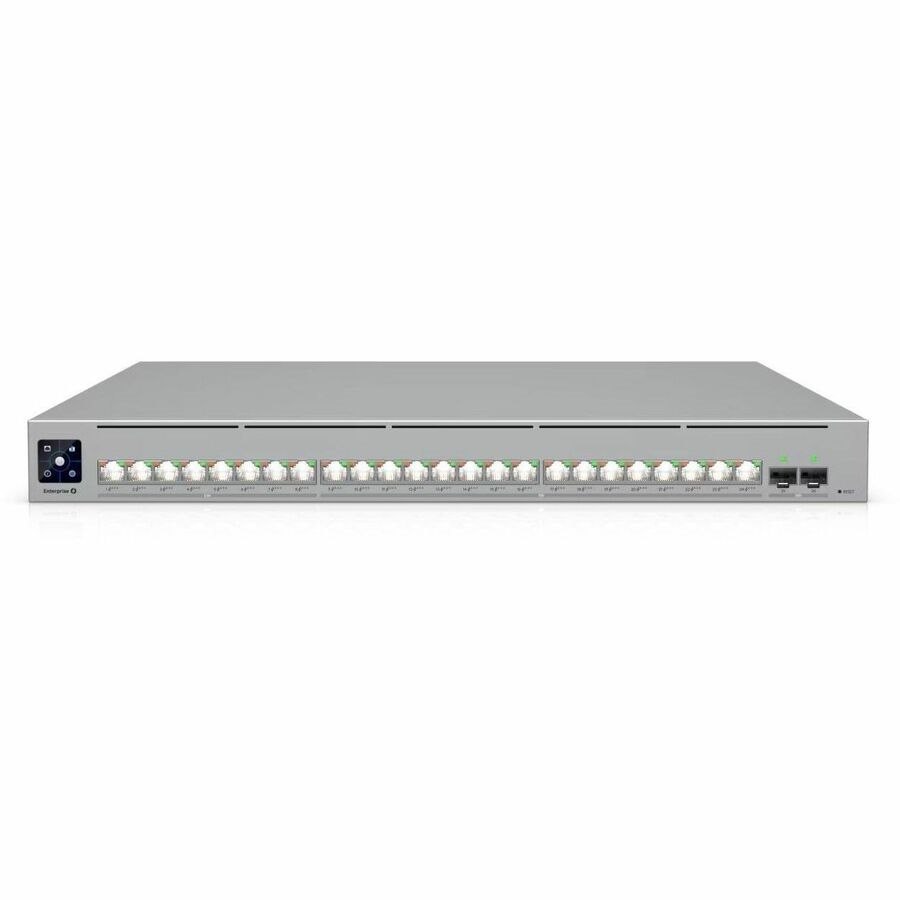

Enterprise-grade 24-port, Layer 3 Etherlighting PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
- Technical Information
- Features
- Hot-swappable
- DHCP Relay
- DHCP Snooping
- Broadcast Storm Control
- Reset Button
- High Availability Supported
- Yes
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Modular
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x 1/2.5 Gigabit Ethernet PoE+++ RJ-45 Network Port
- 16 x 1/2.5/5/10 Gigabit Ethernet PoE+++ RJ-45 Network Port
- 2 x 1/10/25 Gigabit Ethernet SFP28 Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 1000Base-X
- 10GBase-X
- 25GBase-X
- Maximum Data Transfer Rate
- 3.13 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP28
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.1x
- IEEE 802.3bt
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 1050 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC/DC
- Redundant Power Supply Supported
- Yes
- Number of Power Supplies Installed
- 2
- Power Consumption
- 2400 W
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Gray
- Product Material
- SGCC Steel
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Rail-mountable
- Height
- 1.7"
- Width
- 17.4"
- Depth
- 19.5"
- Weight (Approximate)
- 20.86 lb
- Miscellaneous
- Application/Usage
- Network
- Enterprise
- Campus
- Server
