- General Information
- Manufacturer
- Eaton Corporation
- Manufacturer Website Address
- http://www.eaton.com
- Brand Name
- Tripp Lite series
- Product Type
- Power Strip

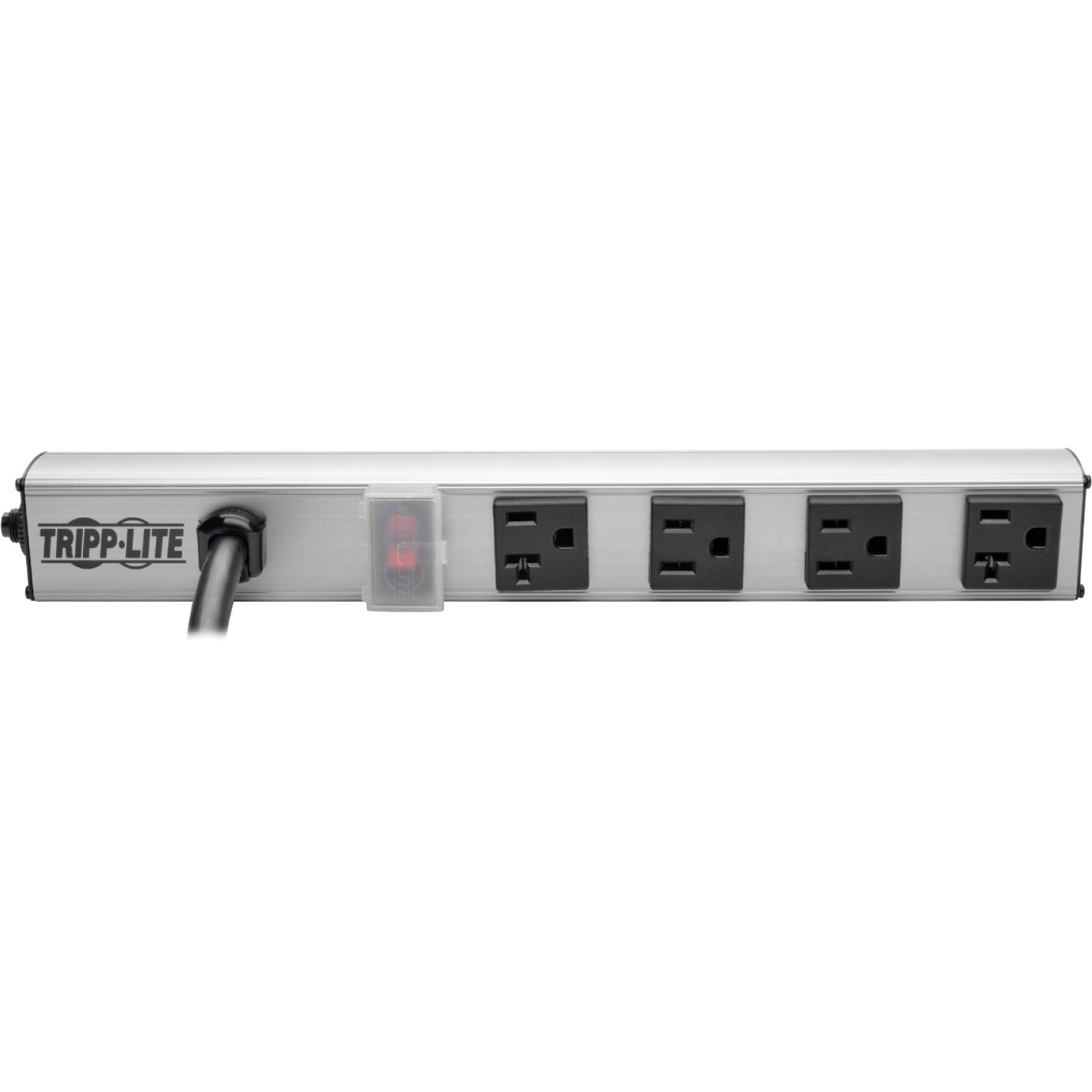

The PS120420 provides a 20-amp, 120v power strip with 2 standard NEMA 5-15 outlets and 2 NEMA 5-20R outlets in a rugged, all-metal, mountable housing. It allows for both vertical and horizontal mounting, making it ideal for a variety of uses including office, rackmount, workbench, industrial and telecom applications. With a NEMA 5-20P, 15-ft. power cord, you don't have to install the PS120420 next to outlets you already have; it can be mounted across the room and deliver reliable service where you need it most. A lighted and covered On/Off switch helps prevent accidental shut-offs, while a 20-amp circuit breaker guards against dangerous circuit overloads. Its sturdy all-metal extruded aluminum housing stands up to demanding network, laboratory or factory environments.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-20P
- Receptacles
- 2 x NEMA 5-20R
- 2 x NEMA 5-15R
- Cord Length
- 15 ft
- Circuit Breaker
- Yes
- Power Description
- Input Voltage
- 120 V AC
- Maximum Input Current
- 20 A
- Maximum Frequency
- 60 Hz
- Power Rating
- 1800 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Mount Type
- Vertical
- Horizontal
- Height
- 1.3"
- Width
- 1.6"
- Depth
- 12"
- Weight (Approximate)
- 2.76 lb
- Miscellaneous
- Package Contents
- 4-outlet Vertical Power Strip with 15-ft. Cord
- Mounting Hardware
- Instruction Manual
- Country of Origin
- Vietnam
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
