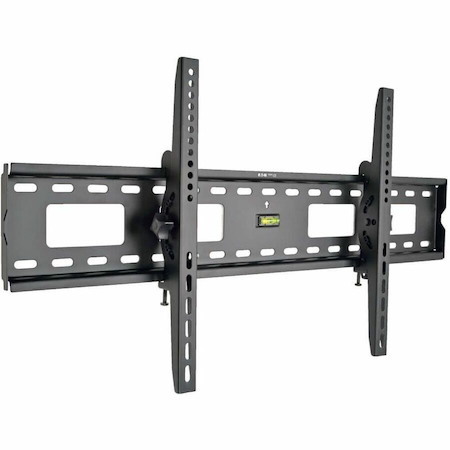

The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 pounds. Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Type
- Wall Mount
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Flat Panel Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 200 lb
- Minimum Screen Size Supported
- 45"
- Maximum Screen Size Supported
- 85"
- Features
- Tilt
- Bubble Level
- Adjustable Viewing Angle
- Horizontal Adjustment
- Durable
- Scratch Resistant
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 200 x 200
- 400 x 200
- 300 x 300
- 400 x 400
- 600 x 400
- 800 x 400
- Product Material
- Metal
- Height
- 17.3"
- Width
- 33.9"
- Depth
- 2.5"
- Weight (Approximate)
- 6.83 lb
- Miscellaneous
- Package Contents
- Tilt Wall Mount for 45" to 85" Flat-Screen Displays
- Mounting Hardware
- Owner's Manual
- Additional Information
- Low-profile mounting keeps unit out of sight for sleek, professional appearance
- Equipped with a bubble level for accurate display leveling
- Wide range of motion with -10° to 10° tilt capability
- Compatibility
- 45" to 85" Flat-Screen Displays
- Country of Origin
- China
- Environmentally Friendly
- Yes
