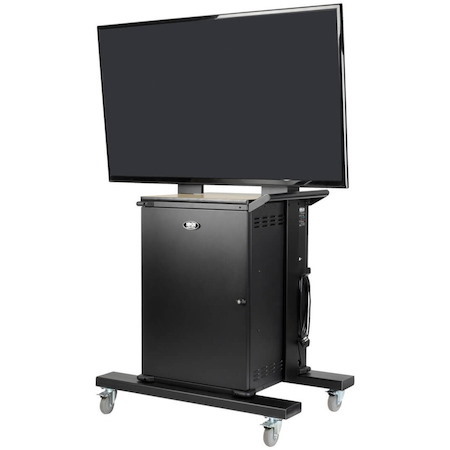

The CSC36DM Display Mount Adapter Kit includes all installation and mounting hardware needed to attach a flat-panel television or monitor to your Tripp Lite CSC36AC 36-Device AC Charging Station Cart. Recommended for schools, offices, warehouses, healthcare facilities and other environments in which tablets, laptops or Chromebooks are used on a daily basis, the CSC36DM fits most flat- or recessed-back displays up to 60 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the adapter brackets. The durable all-metal unit with scratch-resistant powder-coated finish supports up to 100 pounds.
The CSC36DM is designed to fit through standard doorways when assembled. It conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
Features
Mounts Your TV or Monitor to YourCSC36AC Charging Station Cart
- Fits most flat-panel televisions or monitors up to 60 in.
- Ideal for schools, offices, warehouses, healthcare facilities and other environments in which tablets, laptops or Chromebooks are used every day
- All installation and mounting hardware included
Convenient Angle Adjustment
- -10° to 10° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
- Easy-grip knobs allow simple adjustment of tilt angle
Durable Metal Construction
- Supports up to 100 lb.
- Scratch-resistant powder-coated finish
- Easily rolls through standard doorways when assembled
VESA Compliance
- Supports the following VESA mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm
Package Includes
- Display plate
- (2) Adapter brackets
- (2) Outrigger tubes
- (2) Upright supports
- (24) M8 x 16 screws
- (8) M6 x 15 screws
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M8 x 20 screws
- (4) M6 x 30 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- Installation guide
- General Information
- Manufacturer
- Tripp Lite by Eaton
- Manufacturer Website Address
- https://tripplite.eaton.com/
- Brand Name
- Tripp Lite by Eaton
- Product Type
- Mounting Adapter Kit
- Warranty
- Limited Warranty
- 5 Year
- Product Information
- Device Supported
- Flat Panel Display
- Maximum Load Capacity
- 100 lb
- Maximum Screen Size Supported
- 60"
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mounting Pattern
- 200 x 200
- 300 x 300
- 400 x 200
- 400 x 400
- 600 x 400
- 800 x 400
- Height
- 57.5"
- Width
- 29.5"
- Depth
- 42"
- Weight (Approximate)
- 92.84 lb
- Miscellaneous
- Package Contents
- Display Plate
- 2 x Adapter Bracket
- 2 x Outrigger Tube
- 2 x Upright Support
- Mounting Hardware
- Installation Guide
- Compatibility
Tripp Lite CSC36AC Charging Station Cart
- Country of Origin
- China
- Environmentally Friendly
- Yes
