- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- SFP

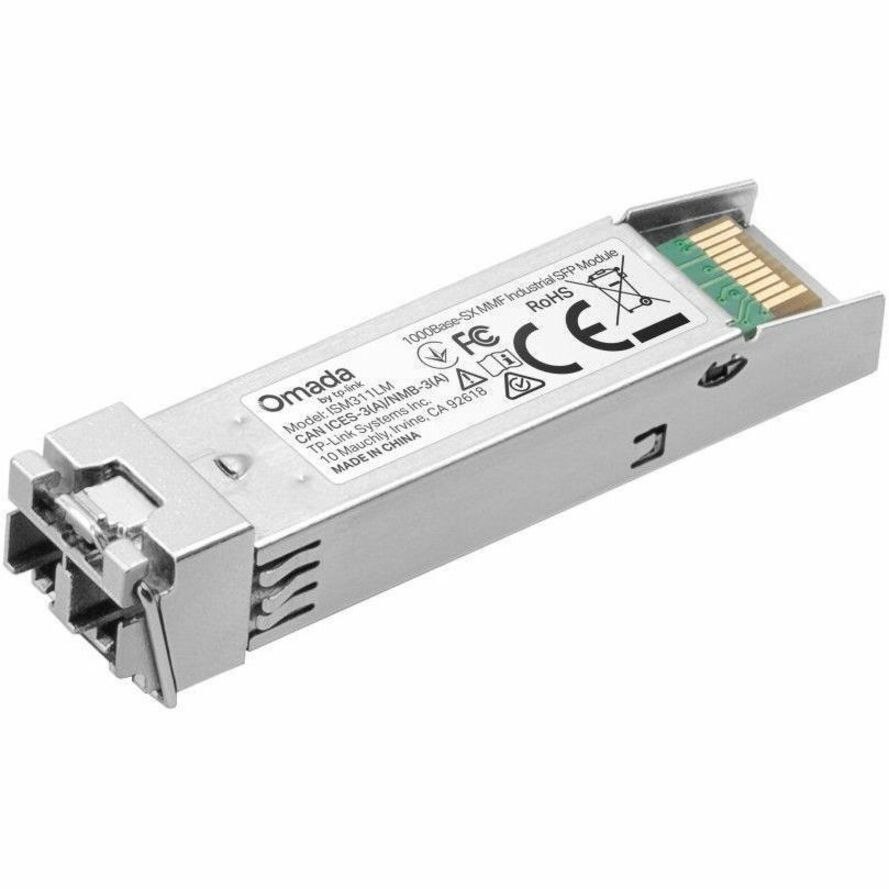

ISM311LM is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LM can extend the distance to 550m. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Features
- Digital Diagnostics Monitoring Interface (DDMI)
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC/UPC
- Interfaces/Ports Details
- 1 x LC/UPC 1000Base-SX Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- 62.5/125 µm
- Fiber Optic Cable Wavelength
- 850 nm
- Fiber Mode Supported
- Multi-mode
- Ethernet Technology
- 1.25 Gigabit Ethernet
- Network Technology
- 1000Base-SX
- Maximum Distance Supported
- 0.55 km
- Maximum Data Transfer Rate
- 1.25 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 185°F (85°C)
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Hot-swappable
- Height
- 0.4"
- Width
- 2.2"
- Depth
- 0.5"
- Miscellaneous
- Package Contents
- 1000Base-SX MMF Industrial SFP Module
- Installation Guide
- Compatibility
MSA Complaint
- Country of Origin
- China
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
