- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- SFP

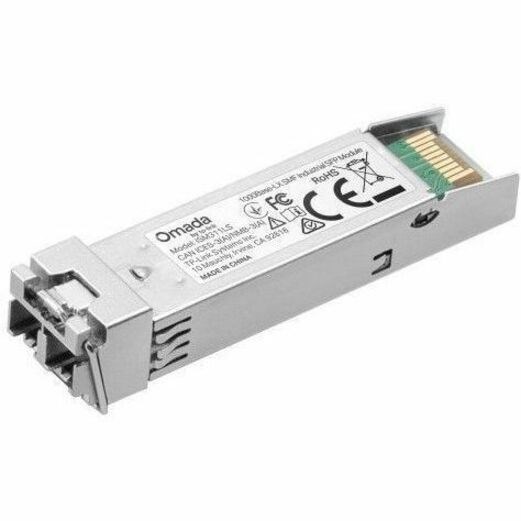

ISM311LS is an industrial SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM311LS can extend the distance to 20km. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
- Technical Information
- Application/Usage
- Optical Network
- Features
- Digital Diagnostics Monitoring Interface (DDMI)
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC Duplex
- Interfaces/Ports Details
- 1 x LC Duplex 1000Base-LX Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Core/Cladding Specification
- 9/125 µm
- Fiber Optic Cable Wavelength
- 1310 nm
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 1.25 Gigabit Ethernet
- Network Technology
- 1000Base-SX
- Maximum Distance Supported
- 20 km
- Maximum Data Transfer Rate
- 1.25 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 185°F (85°C)
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Hot-swappable
- Height
- 0.4"
- Width
- 2.2"
- Depth
- 0.5"
- Miscellaneous
- Package Contents
- 1000Base-LX SMF Industrial SFP Module
- Installation Guide
- Compatibility
MSA Complaint
- Country of Origin
- China
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
