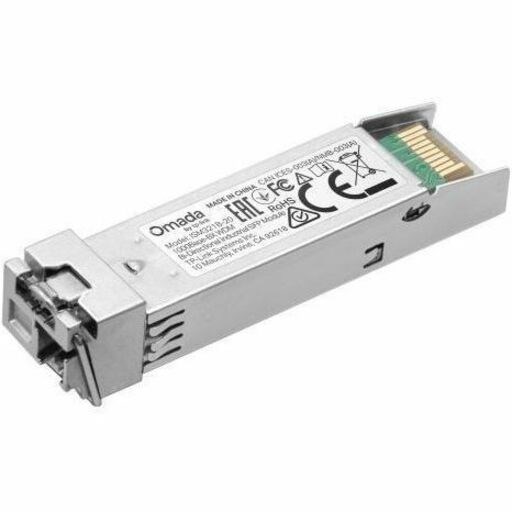

ISM321B-20 is an industrial WDM SFP Module introduced for extending transfer distance. Attached to our industrial switches, ISM321B-20 can extend the distance to 20km with one single fiber. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
- General Information
- Manufacturer
- TP-LINK Technologies Co., Ltd
- Manufacturer Website Address
- http://www.tp-link.com/us
- Brand Name
- Omada
- Product Type
- SFP
- Technical Information
- Application/Usage
- Data Networking
- Optical Network
- Features
- Digital Diagnostics Monitoring Interface (DDMI)
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- LC
- Interfaces/Ports Details
- 1 x LC 1000Base-BX Network
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Core/Cladding Specification
- 9/125 µm
- Fiber Optic Cable Wavelength
- 1310 nm
- 1550 nm
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 1.25 Gigabit Ethernet
- Network Technology
- 1000Base-BX
- Maximum Distance Supported
- 20 km
- Maximum Data Transfer Rate
- 1.25 Gbit/s
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 185°F (85°C)
- Physical Characteristics
- Form Factor
- Hot-pluggable
- Hot-swappable
- Height
- 0.4"
- Width
- 2.2"
- Depth
- 0.5"
- Miscellaneous
- Package Contents
- 1000Base-BX WDM Bi-Directional Industrial SFP Module
- Installation Guide
- Compatibility
MSA Complaint
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
