- General Information
- Manufacturer
- Sonnet Technologies, Inc
- Manufacturer Website Address
- http://www.sonnettech.com
- Brand Name
- Sonnet
- Product Line
- Fusion
- Product Type
- PCIe to U.2 NVMe Adapter
The Most Economical Way To Add Ultra-Fast, Extra-Large Capacity SSD Storage | Install Two U.2 NVMe SSDS Into a PCIe Card Slot - Add up to 62TB of Enterprise SSD Storage with Ultra-fast Data Transfers

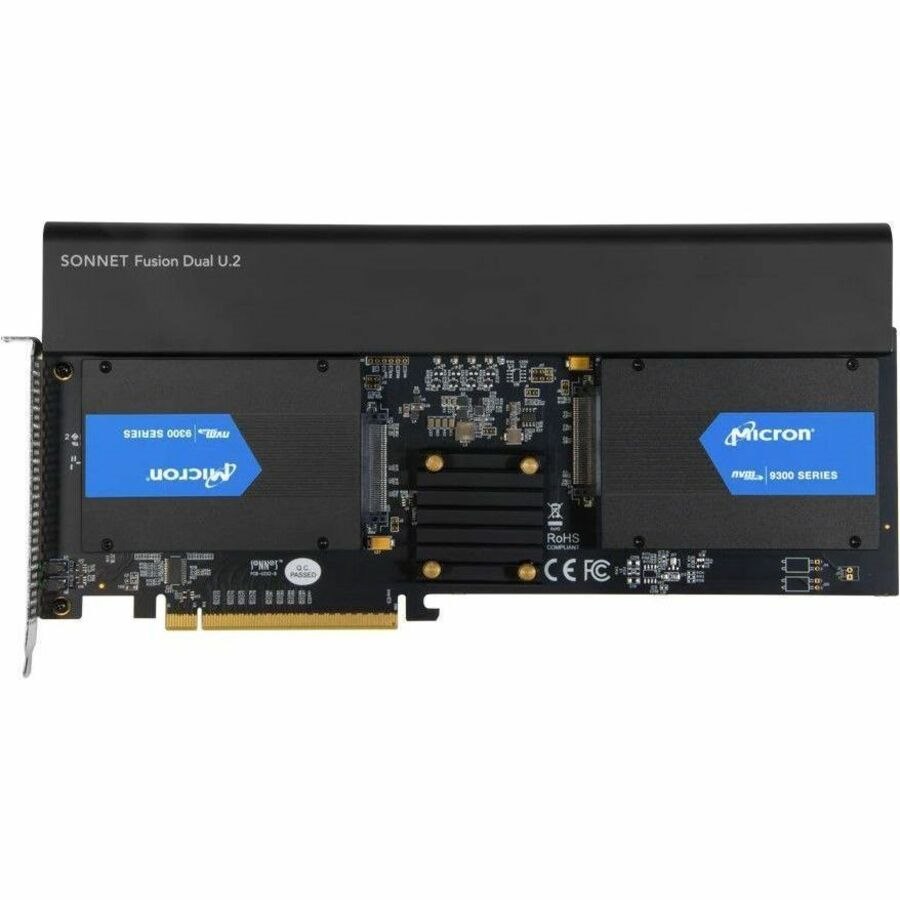

Do you need more storage capacity for your computer? Is super high-speed throughput plus maximum IOPS (Input/Output Operations Per Second) performance critical to your work? U.2 NVMe PCIe SSDs deliver both. Sonnet's Fusion™ Dual U.2 SSD PCIe Card enables you to upgrade your system in a flash, mounting two enterprise class U.2 SSDs with up to 30.72TB or greater capacity in a single full-length x16 PCIe card slot, with no separate power or data cables, drive adapters, or mounting trays required.
Use the Sonnet card for instant-access media storage or as a high-performance scratch disk in your Mac Pro® tower*; Windows® or Linux® PC desktop or server; or Thunderbolt™ to PCIe card expansion system with an available x16 PCIe slot. Legacy Mac® users can install macOS® on one SSD to create an incredibly fast boot drive and use the other installed SSD for and still obtain blazing-fast performance.
Full Performance Design - Sonnet Advantages
The Fusion Dual U.2 SSD PCIe Card is a full-height, full-length PCIe 3.0 card with a 16-lane (x16) interface, designed to support full performance from two U.2 SSDs.
- Warranty
- Limited Warranty
- 2 Year
- Physical Characteristics
- Card Height
- Full-height
- Height
- 1.4"
- Width
- 7"
- Length
- 13.8"
- Miscellaneous
- Device Supported
- Desktop PC
- Server
- Operating System Supported
- Windows
- Linux
- macOS
- Compatibility
- Mac Pro 2023
- Mac Pro 2019
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
