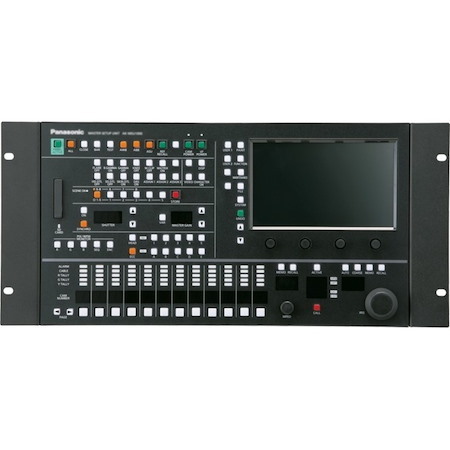

Panasonic Master Setup Unit (MSU)

  • Part: 2091069
  • Model: AKMSU1000GJ
$20,554.00
FREE DELIVERY

Availability

Out of Stock

  • General Information
    • Manufacturer
    • Panasonic
    • Manufacturer Website Address
    • http://www.panasonic.com
    • Brand Name
    • Panasonic
    • Product Type
    • Master Setup Unit (MSU)

Controls up to 99 CCU Units via IP

The CCU supports not only UHD and HD simultaneous output, but also enables high-speed output up to 240p in HD mode to be performed simultaneously with standard (1x) output, while still having a compact size.

  • IP and serial connections supported.
    IP connection: Up to 99 units
    Serial connection: Up to six units
  • 7 inch Touch Panel LCD
    Video monitoring function
  • HD SDI Input (Monitoring) (1080i)
  • Power DC12 V(DC10 V - DC17 V) or PoE+ (via PoE+ Hub)

  • Power Description
    • Power Source
    • DC
  • Physical Characteristics
    • Height
    • 8.7"
    • Width
    • 19"
    • Depth
    • 3.2"
    • Weight (Approximate)
    • 8.82 lb
  • Miscellaneous
    • Package Contents
      • Master Setup Unit (MSU)
      • Mounting brackets
      • Dial heights
    • Application/Usage
    • Camera
    • Compatibility
      • https://pro-av.panasonic.net/en/products/compatibility_chart/
      Panasonic Cameras:
      • AK-UC3000
      • AK-HC5000
