- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR645
- Product Type
- Server

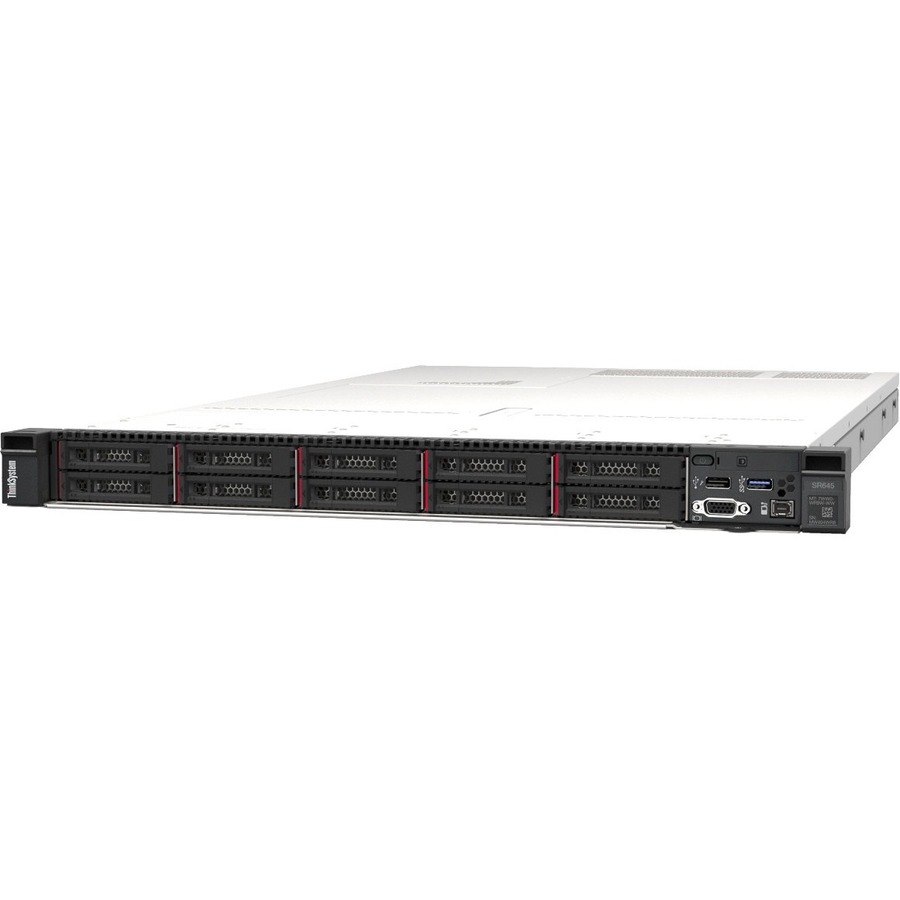

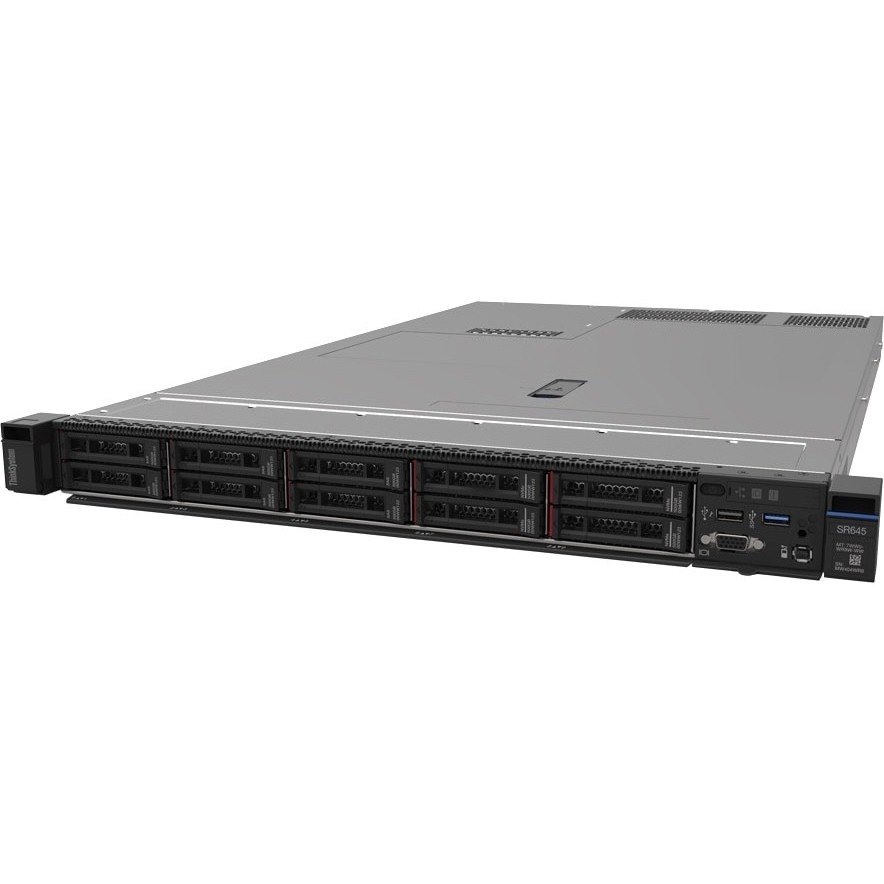

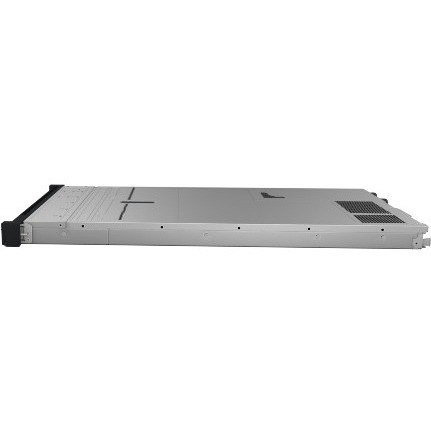

The Lenovo ThinkSystem SR645 7D2XA016NA is a 2-socket 1U server that features the AMD EPYC 7002 "Rome" family of processors. With 8 cores per processor and support for the new PCIe 4.0 standard for I/O, the 7D2XA016NA offers the ultimate in two-socket server performance in a space-saving 1U form factor.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Type
- EPYC
- Processor Generation
- 2nd Gen
- Processor Model
- 7262
- Processor Core
- Octa-core (8 Core)
- Processor Speed
- 3.20 GHz
- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 4 TB
- Memory Technology
- TruDDR4
- Total Number of Memory Slots
- 32
- Number of Occupied Memory Slots
- 1
- Storage
- Total Hard Drive Capacity
- No
- Optical Drive Type
- No
- Controllers
- Controller Type
- Serial ATA/600
- 12Gb/s SAS
- I/O Expansions
- Hot Swappable Bays
- Yes
- Display & Graphics
- Graphics Controller Model
- G200
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- 25 Gigabit Ethernet
- Operating System
- Operating System
- No
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Maximum Power Supply Wattage
- 750 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.3"
- Depth
- 30.4"
- Weight (Approximate)
- 44.53 lb
- Miscellaneous
- Package Contents
- ThinkSystem SR645 7D2XA016NA Server

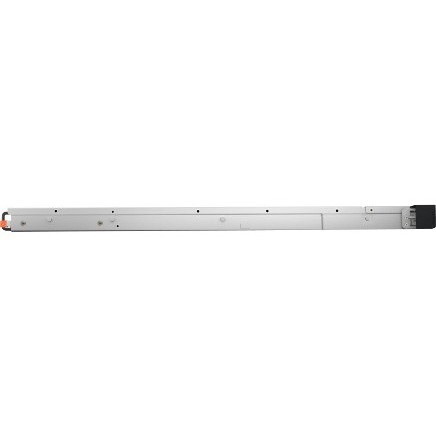

- Slide Rail Kit
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 3.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
