- General Information
- Manufacturer
- Legrand Group
- Manufacturer Website Address
- http://www.legrand.us
- Brand Name
- Chief
- Product Line
- Thinstall
- Product Type
- Mounting Arm

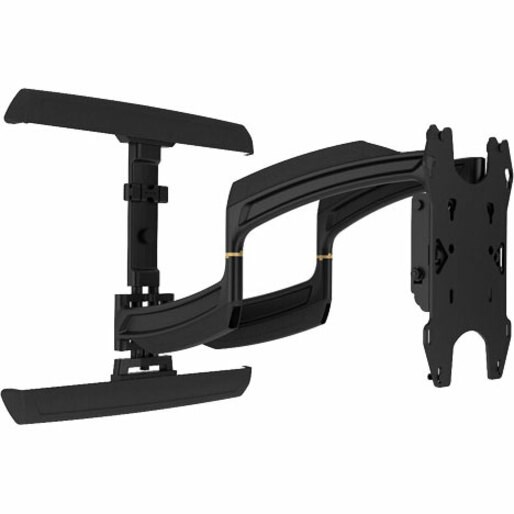

The Chief dual arm wall mount allows for perfect flat panel display placement and extends up to 25" for viewing from any angle while remaining low-profile in home position. The screen of this dual arm mount can be adjusted effortlessly with just the touch of a finger tip thanks to Chief's Centris technology. With built in cable management channels, your cables will be hidden allowing for a clean, professional look for this tv mount.
- Warranty
- Limited Warranty
- 10 Year
- Product Information
- Size Detail
- Medium
- Device Supported
- Flat Panel Display
- Monitor
- TV
- Display
- Number of Displays Supported
- 2
- Maximum Load Capacity
- 75 lb
- Minimum Screen Size Supported
- 32"
- Maximum Screen Size Supported
- 65"
- Maximum Adjustable Height
- 1"
- Maximum Adjustable Depth
- 25.70"
- Features
- Tilt
- Extendable
- Swing
- Adjustable
- Centris
- Cable Management
- Mount Profile
- Low Profile
- Height Adjustable
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 100 x 100
- 600 x 400
- Form Factor
- Wall Mountable
- Height
- 17.20"
- Width
- 29.50"
- Depth
- 1.30"
- Weight (Approximate)
- 31 lb
- Miscellaneous
- Package Contents
- 1 x Main Assembly
- 1 x Wall Rail
- 1 x Right Upright
- 1 x Left Upright
- 1 x Top Interface Support
- 1 x Bottom Interface Support
- 2 x Wall Rail Cover
- 1 x Rag Screw Cover
- 1 x Bumper
- 1 x Latch Spacer
- 2 x Long Adhesive
- 4 x Short Adhesive
- Mounting Hardware
- Application/Usage
- Flat Panel Display
- Additional Information
- Ultra Low Profile Sleek design collapses to 1.3" (33 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends up to 25" (635 mm) Full extension maximizes viewing potential
- Centris low-profile tilt Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
- Centerless Lateral Shift Post-installation lateral shift allows up to 16" (406 mm) of adjustment for limitless centering capability
- Integrated Cable Management Enclosed, tool-free cable covers and a wide open wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Orientation: Landscape
- Solution Type: Universal
- Tilt: +,- 15
- Compatibility
- LCD Screen
- LED Screen
- Plasma Screen
- Recycled
- Yes
- Post-consumer-waste%
- 30%
- Country of Origin
- China
