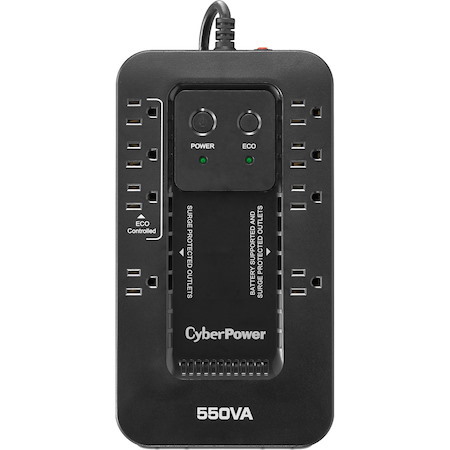

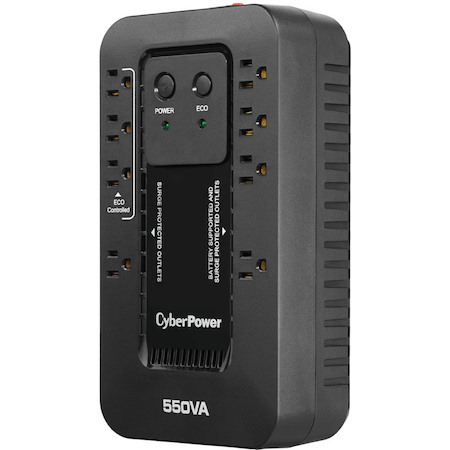

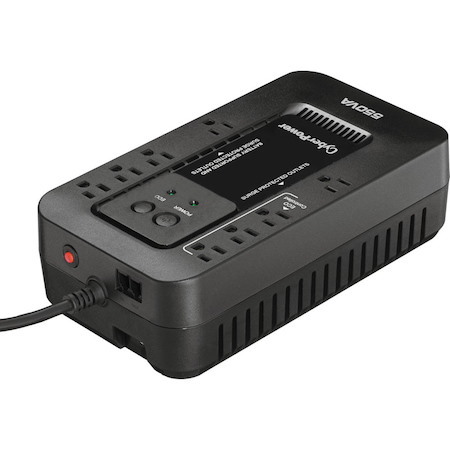

A compact UPS with standby topology, the CyberPower Ecologic EC550G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC550G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC550G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.
- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpowersystems.com/
- Brand Name
- CyberPower
- Product Series
- Ecologic UPS
- Product Type
- Standby UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Three-year warranty (including coverage of batteries)
- Directly Connected Equipment Guarantee
- $100000 Lifetime
- Technical Information
- Plug/Connector Type
- NEMA 5-15P
- Receptacle Type
- NEMA 5-15R
- Receptacle Detail
- 8 x NEMA 5-15R
- Number of Battery & Surge Outlets
- 4
- Number of Surge-only Outlets
- 4
- Overload Protection
- Yes
- Cord Length
- 5 ft
- Transfer Time
- 4 ms
- EMI/RFI Noise Filter
- Yes
- Energy Saving
- GreenPower UPS™ High-Efficiency
- Application/Usage
- Desktop Computer
- Workstation
- Network Device
- Home Entertainment System
- Computer Peripheral
- Home Theater
- Equipment
- Personal Electronic
- Home Network
- Router
- Modem
- VoIP Phone
- Surge Suppression
- Yes
- Features
- Audible Alarm
- Power Description
- Load Capacity (VA)
- 550 VA
- Load Capacity (Watt)
- 330 W
- Input Voltage
- 120 V AC
- Output Voltage
- 120 V AC
- Input Frequency
- 47 Hz
- 63 Hz
- Output Frequency
- 60 Hz
- 50 Hz
- Waveform Type
- Simulated Sine Wave
- Surge Energy Rating
- 526 J
- Circuit Breaker
- Yes
- Output Power Factor
- 0.6
- Management
- Alarm
- Battery Mode
- Low Battery
- Overload
- Controls/Indicators
- Status Indicators
LED Indicators:
- Power On
- ECO On/Of
- Interfaces/Ports
- USB
- Yes
- USB (HID Compliant) Port
- Yes
- Battery Information
- Battery Characteristics
- Sealed
- Battery Chemistry
- Lead Acid
- Backup/Run Time (Full Load)
- 2 Minute
- Backup/Run Time (Half Load)
- 8 Minute
- Typical Battery Recharge Time
- 8 Hour
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Storage Temperature
- 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Elevation
- 10000 ft
- Maximum Storage Elevation
- 50000 ft
- Operating Humidity
- 0% - 90%
- Storage Relative Humidity
- 0% - 95%
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Height
- 3.1"
- Width
- 10.6"
- Depth
- 5.9"
- Form Factor
- Compact
- Weight (Approximate)
- 6 lb
- Miscellaneous
- Additional Information
- Field-serviceable Battery : Replaceable by qualified technician
- Plug Style : Right Angle - 45° Offset
- On Battery Frequency : 50/60 Hz ± 1% (auto-sensing)
- On Battery Voltage : 120 VAC ± 5%
- Outlets - Eco Controlled : 3
- Outlets - Widely Spaced : 2
- Management Cable : USB Cable
- Software (Free Download) : PowerPanel® Personal
- Keyhole Mounting Slots : Yes
- Operating Relative Humidity : 0 - 90 % (non-condensing)
- Certifications & Standards
- UL1778
- FCC Part 15 Class B
- CSA C22.2 No.107.3-05
- Energy Star
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
