- General Information
- Manufacturer
- Corsair
- Manufacturer Website Address
- http://www.corsair.com/us/
- Brand Name
- Corsair
- Product Series
- RMe
- Product Type
- Power Supply

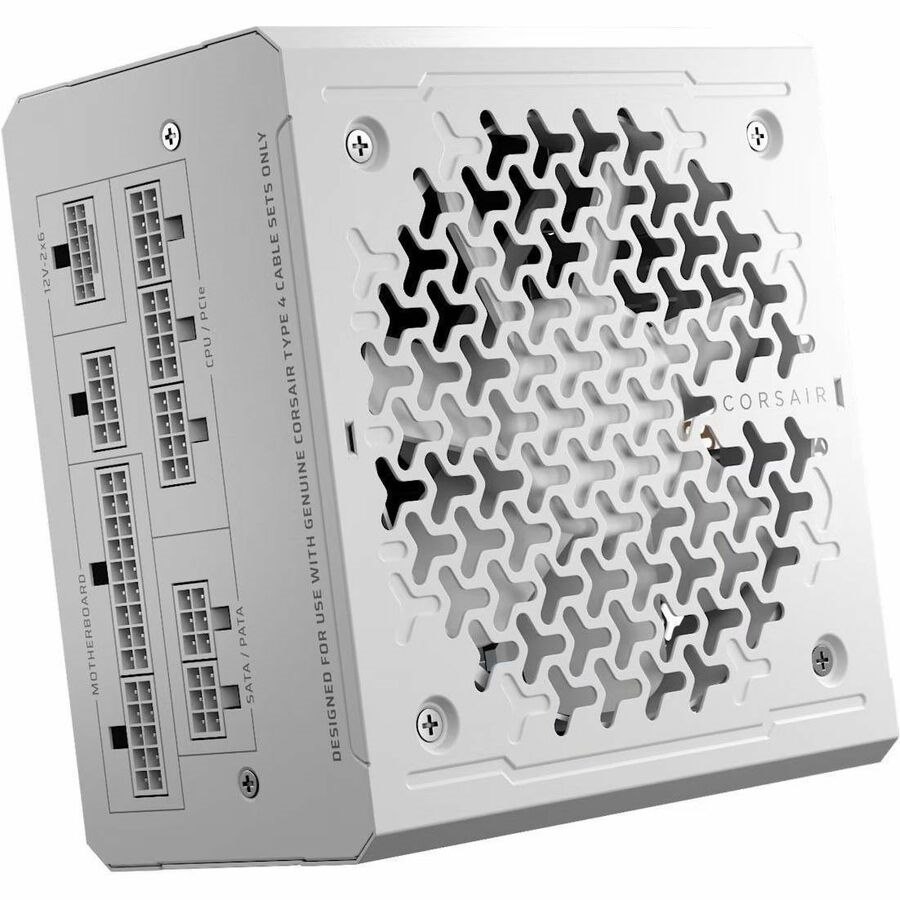

KEEP IT NEAT AND TIDY | FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs. A native 600W 12V-2x6 GPU connector and multiple 8-pin PCIe connectors mean RMe power supplies more than meet the needs of modern and upcoming GPUs and CPUs.
ON THE CUTTING-EDGE | ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.
PCIe 5.1 12V-2x6 GPU power cable for next-gen GPUs with Dual-Color Connector for visual confirmation of a secure connection
CYBENETICS GOLD CERTIFIED
Steady power output at up to 90% efficiency and Cybenetics™ Gold certified for lower power consumption, less noise, and cooler temperatures.
NEARLY-SILENT COMPUTING | LOW NOISE OPERATION IN A COMPACT SIZE
A compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
BUILT TO LAST | TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105°C-rated industrial-grade capacitors.
With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
WORLD-CLASS SUPPORT
Our award-winning service means you can enjoy your gear worry-free.
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Specification Compliance
- ATX 3.1
- ATX12V v3.1
- Efficiency
- 90%
- Number of Fans
- 1
- Fan Bearing Type
- Rifle Bearing
- Fan Diameter
- 120 mm
- Modular
- Yes
- Modular Type
- Fully Modular
- NVIDIA SLI Supported
- Yes
- Features
- Low Noise
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage
- 120 V
- 230 V
- Output Voltage
- 3.3 V
- 5 V
- 12 V
- 5 V SB
- Output Voltage Detail
- 3.3 V @ 20 A
- 5 V @ 20 A
- 5 V SB @ 3 A
- 12 V @ 83.3 A
- Output Current
- 20 A
- 83.30 A
- 3 A
- Output Power
- 1000 W
- Input Frequency
- 47~63Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 6
- PCI Express Connector
- Yes
- PCI Express Version
- 5.1
- Number of (6+2 pin) PCI Express Power Connectors
- 2
- Number of (4+4 pin) CPU Power Connectors
- 2
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Internal
- Height
- 3.4"
- Width
- 5.5"
- Depth
- 5.9"
- Miscellaneous
- Energy Efficiency Certification
- 80 Plus Gold
