- General Information
- Manufacturer
- Axis Communications
- Manufacturer Website Address
- http://www.axis.com
- Brand Name
- AXIS
- Product Type
- Network Camera

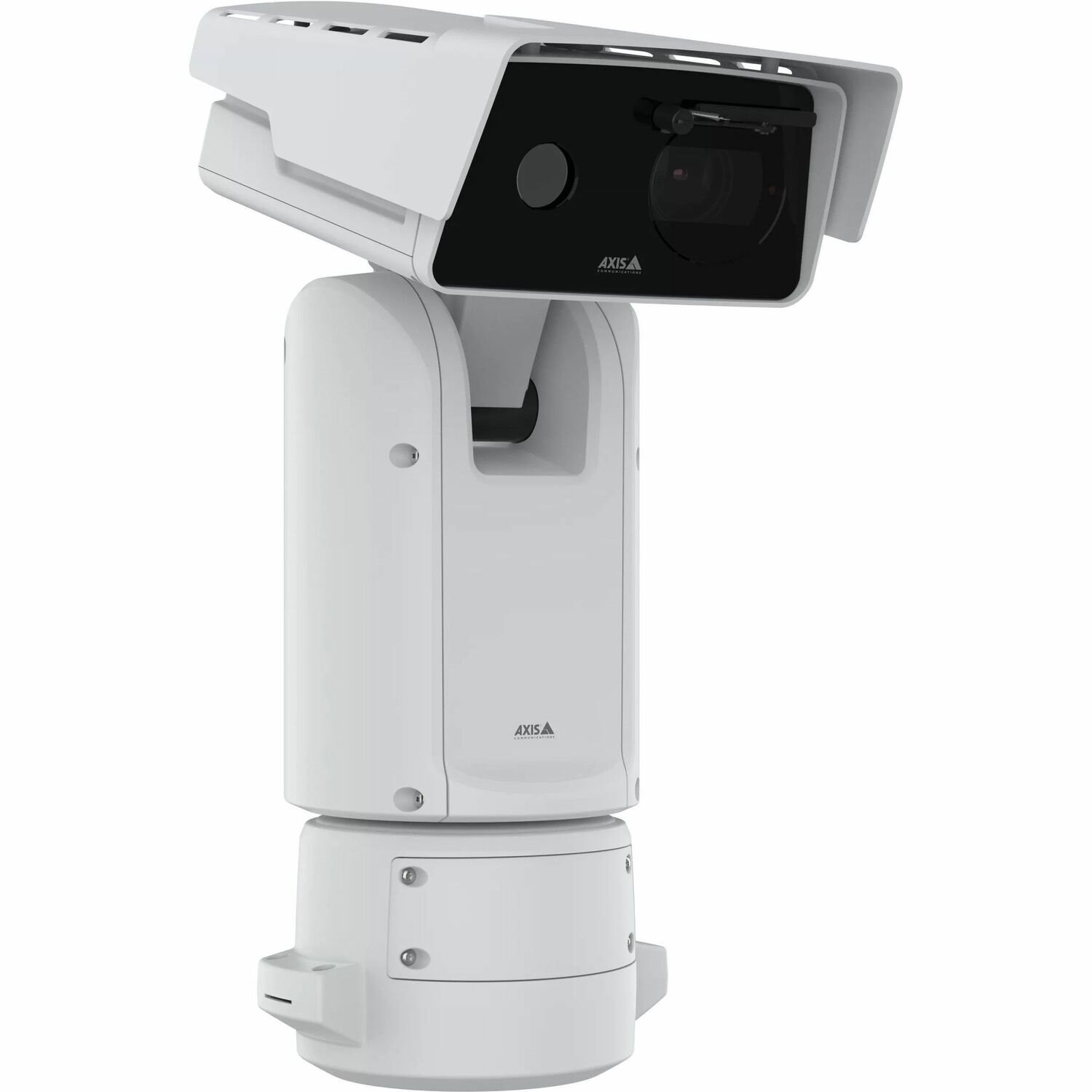

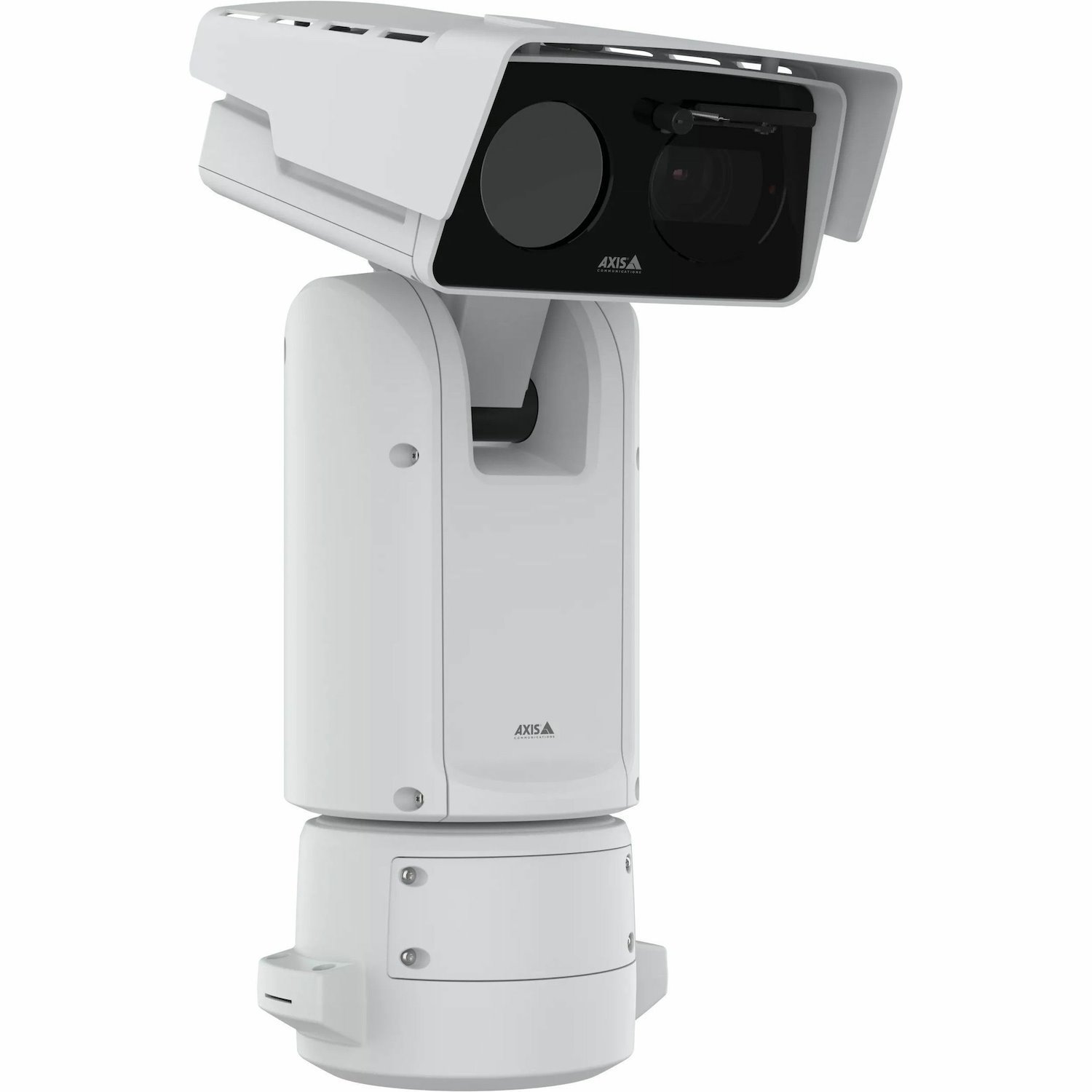

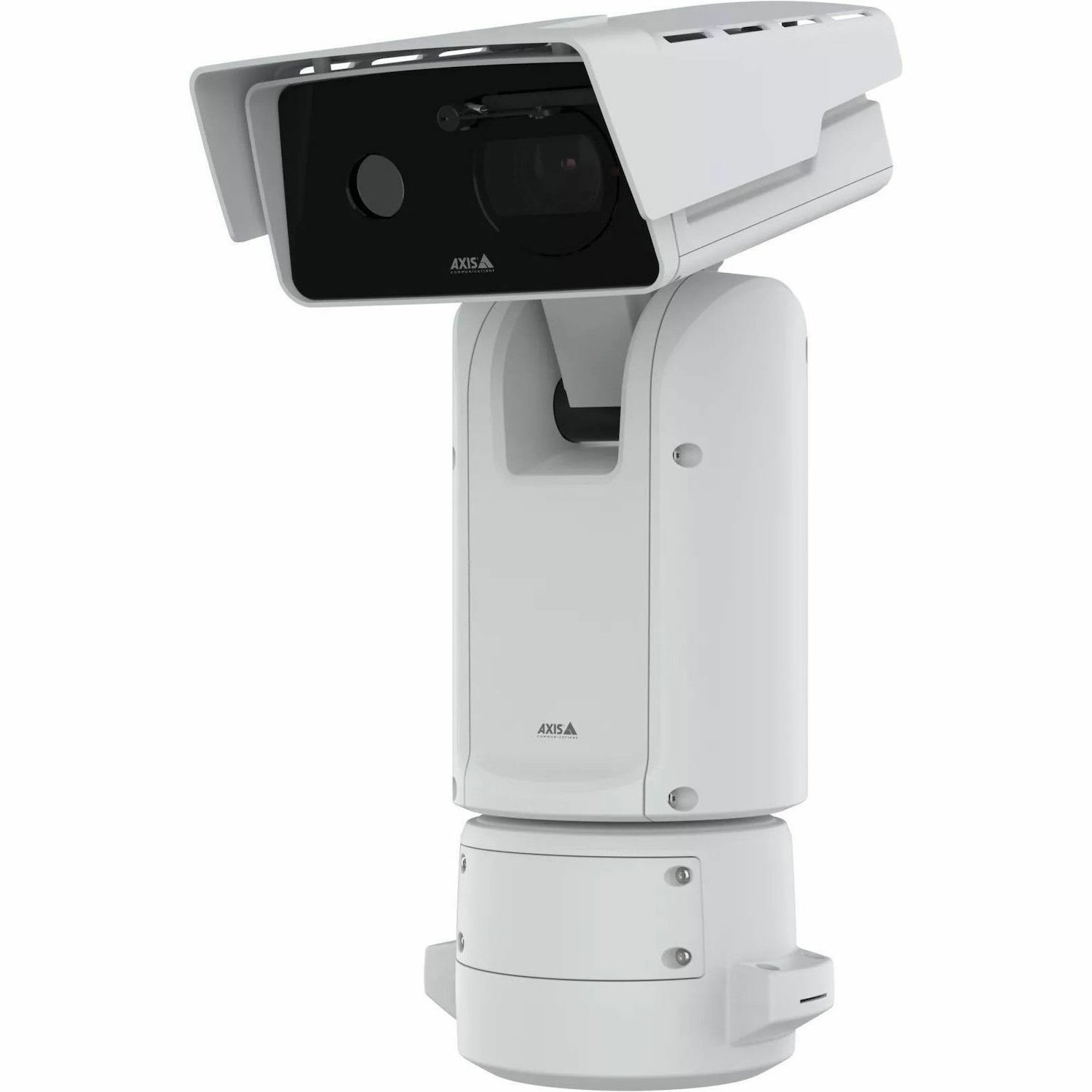

This bispectral camera offers reliable thermal detection and visual verification. It features 360° infinite pan for fast repositioning and continuous tracking of objects. Electronic image stabilization (EIS) on both channels ensures smooth video. And Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in near darkness or challenging light. Built on a powerful analytics platform, it's easy to add Axis and 3rd party analytics. It's possible to connect this camera using fiber optic cabling to overcome distance and bandwidth limitations.
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Recording Formats
- Full HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Type
- Infrared
- Camera Iris
- Auto
- Infrared (IR) Cut-off Filter
- Yes
- Languages Support
- English
- German
- French
- Spanish
- Italian
- Russian
- Simplified Chinese
- Japanese
- Korean
- Polish
- Portuguese
- Traditional Chinese
- Dutch
- Czech
- Swedish
- Finnish
- Turkish
- Thai
- Vietnamese
- Wide Dynamic Range Detail
- 120 dB
- Display & Graphics
- Image Sensor Type
- CMOS
- Image Sensor Size
- 1/2.8"
- Thermal Image Sensor Type
- Uncooled Microbolometer
- Color Supported
- Color
- Field of View
- Visual: Horizontal field of view: 58.5°-2.4°Vertical field of view: 35°-1.3, Thermal 35 mm: Horizontal field of view: 17°Vertical field of view: 12.8° Vertical field of view: 13.5°-4.5°
- Number of Sensors
- 2
- Video
- Video Formats
- H.264
- H.265
- Motion JPEG
- Zipstream
- H.265 (MPEG-H Part 2/HEVC) Main Profile
- H.264M (MPEG-4 Part 10/AVC)
- H.264H (MPEG-4 Part 10/AVC)
- H.264B (MPEG-4 Part 10/AVC)
- Maximum Video Resolution
- 1920 x 1080
- Thermal Video Resolution
- 640 x 480
- Maximum Frame Rate
- 30 fps
- Audio
- Audio Support
- Yes
- Lens
- Lens Type
- Fixed/Varifocal
- Minimum Focal Length
- 4.30 mm
- Maximum Focal Length
- 137.60 mm
- Lens Included
- Yes
- Minimum Aperture
- f/4
- Maximum Aperture
- f/1.4
- Optical Zoom
- 32x
- Maximum Aperture (Lens 2)
- f/1.2
- Maximum Thermal Focal Length
- 1.38"
- Exposure
- Shortest Shutter Speed
- 1/66500 Second
- Longest Shutter Speed
- 2 Second
- PTZ Modes
- Preset Point
- Network & Communication
- Connectivity Technology
- Wired
- Ethernet Technology
- Gigabit Ethernet
- Protocols
- UDP
- IGMPv1/v2/v3
- ICMP
- DHCPv4/v6
- ARP
- SSH
- LLDP
- CDP
- MQTT
- MQTT v3.1.1
- Syslog
- ZeroConf
- IEEE 802.1AR
- IEEE 802.1X (EAP-TLS)
- ONVIF
- mDNS (Bonjour)
- IPv6 USGv6
- ICMPv4/ICMPv6
- HTTP
- HTTPS
- HTTP/2
- TLS
- DiffServ (QoS)
- FTP
- SFTP
- CIFS/SMB
- SMTP
- UPnP
- SNMPv1/v2c/v3 (MIB2)
- DNS/DNSv6
- DDNS
- NTP
- NTS
- RTCP
- RTSP
- RTP
- SRTP/RTSPS
- TCP
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Internal Memory
- 2 GB
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Maximum Power Consumption
- 185 W
- Input Voltage
- 52 V DC
- 58 V DC
- Power Source Type
- DC
- Physical Characteristics
- Durability
- Weather Resistant
- Vandal Resistant
- Color Family
- White
- Product Color
- White
- Product Material
- Aluminum
- Glass
- Germanium
- Weight (Approximate)
- 32.85 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- -40°F (-40°C)
- Maximum Storage Temperature
- 149°F (65°C)
- Minimum Operating Humidity (Condensing)
- 10%
- Maximum Operating Humidity (Condensing)
- 100%
- Minimum Storage Humidity (Non-condensing)
- 5%
- Maximum Storage Humidity (Non-condensing)
- 95%
- Miscellaneous
- Features
- Day/Night
- Ingress Protection
- Motion Detection
- Vehicle Detection
- Human Detection
- HTTPS Encryption
- Password Protection
- Privacy Masking
- Wide Dynamic Range
- White Balance
- SD Card Local Storage
- Electronic Image Stabilization
- Indoor/Outdoor
- Outdoor
- Package Contents
- Q8752-E Mk II Bispectral PTZ Camera
- Installation Guide
- Connector kit
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- TAA Compliant
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
