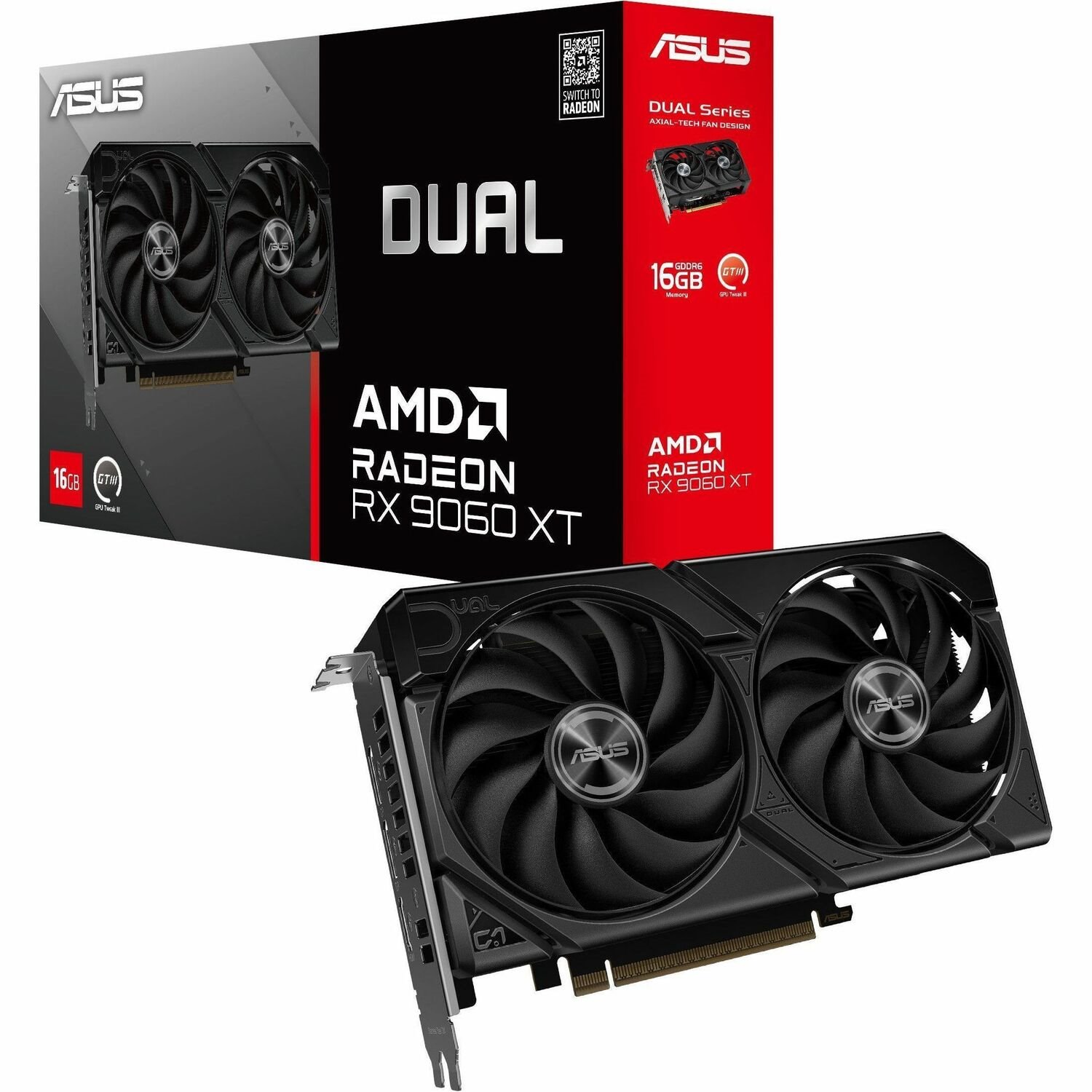

Dual Radeon™ RX 9060 XT | Dual Fans, Perfect Fit
ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Cooling 2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 55°C and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.
Vented Backplate
A vented backplate significantly enhances heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.
- General Information
- Manufacturer
- ASUS Computer International
- Manufacturer Website Address
- http://usa.asus.com
- Brand Name
- Asus
- Product Line
- Dual
- Product Type
- Graphic Card
- Technical Information
- API Supported
- OpenGL 4.6
- Number of Monitors Supported
- 3
- Features
- Dual-fan Cooler
- Maximum Digital Display Resolution
- 7680 x 4320
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- AMD
- Chipset Line
- Radeon
- Chipset Series
- RX 9000
- Chipset Model
- RX 9060 XT
- GPU Boost Clock
- 3.25 GHz
- Game Clock
- 2.64 GHz
- Memory
- Standard Memory
- 16 GB
- Memory Technology
- GDDR6
- Bus Width
- 128 bit
- Interfaces/Ports
- Host Interface
- PCI Express 5.0
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 2
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- Power Description
- Power Supply Wattage
- 550 W
- Power Connector
- 1x 8-pin
- Physical Characteristics
- Slot Space Required
- Triple
- Form Factor
- Plug-in Card
- Cooler Type
- Fan Cooler
- Height
- 1.9"
- Width
- 4.7"
- Length
- 8"
- Miscellaneous
- Platform Supported
- PC
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
