- General Information
- Manufacturer
- Schneider Electric SA
- Manufacturer Website Address
- http://www.schneider-electric.com
- Brand Name
- APC by Schneider Electric
- Product Type

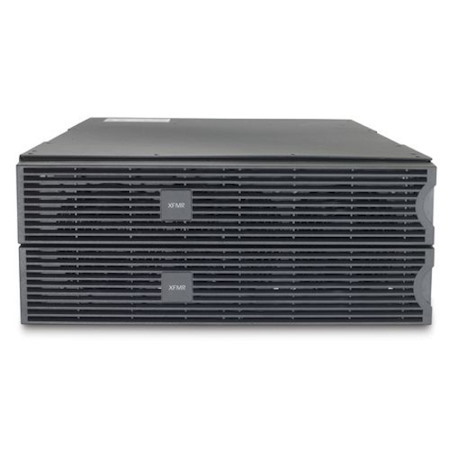

- Step Down Transformer
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
- 2 years repair or replace
- Technical Information
- Power Rating
- 10000 VA
- Input Receptacle Type
- Hard Wire 3-wire (2PH + G)
- Output Receptacle Type
- Hard Wire 3-wire (2PH + G)
- Hard Wire 4-wire (2PH+N+G)
- NEMA L14-30R
- NEMA L5-20R
- Output Receptacle Detail
- 1 x Hard Wire 3-wire (2PH + G)
- 1 x Hard Wire 4-wire (2PH+N+G)
- 2 x NEMA L14-30R
- 2 x NEMA L5-20R
- Power Description
- Input Voltage
- 208 V
- Output Voltage
- 120 V
- 208 V AC
- 240 V AC
- Maximum Line Current
- 60 A
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Mounting Location
- Front
- Mounting Preference
- Lower
- Rack Height
- 4U
- Height
- 6.9"
- Width
- 17"
- Depth
- 29.5"
- Weight (Approximate)
- 220.46 lb
- Miscellaneous
- Additional Information
- Acceptable Input Voltage: 200-240 VAC
- Package Contents
- Step-Down 10kVA Rack-mountable Transformer
- Documentation CD
- Hardwire panel
- Installation guide
- Rack mounting brackets
- User manual
- Certifications & Standards
- C-tick|CE|CSA|GOST|UL Listed|VDE
- Green Premium
- Yes
- Optimized Energy Efficiency
- Yes
- Mercury Free
- Yes
- RoHS Exemption Information
- https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APTF10KT01_ROHS_DECLARATION&p_FileName=APTF10KT01KIT_ROHS_DECLARATION_US.pdf
- REACH Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759846&lang=en-us
- EU RoHS Declaration URL
- https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759846&lang=en-us
- Environmental Profile Availability
- https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1511005_EN
- End of Life Manual Availability
- https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1511005_EN
- REACH free of SVHC
- No
- WEEE Statement
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
